POOL TW Anchor for Sale

High Holding Power Anchors

 +47 - 55 90 90 20  castle@castlehills.no  + HHP anchors

Buy or Rent a POOL TW Anchor

Get a quote more info

Pool TW is a registered trademark, it is copyrighted. So when we say that we sell original POOL TW Anchors, we actually sell you an original, not an imitation. We own the original HHP Pool TW Anchor, with it's characteristic flat body and efficient design.

TW Anchor

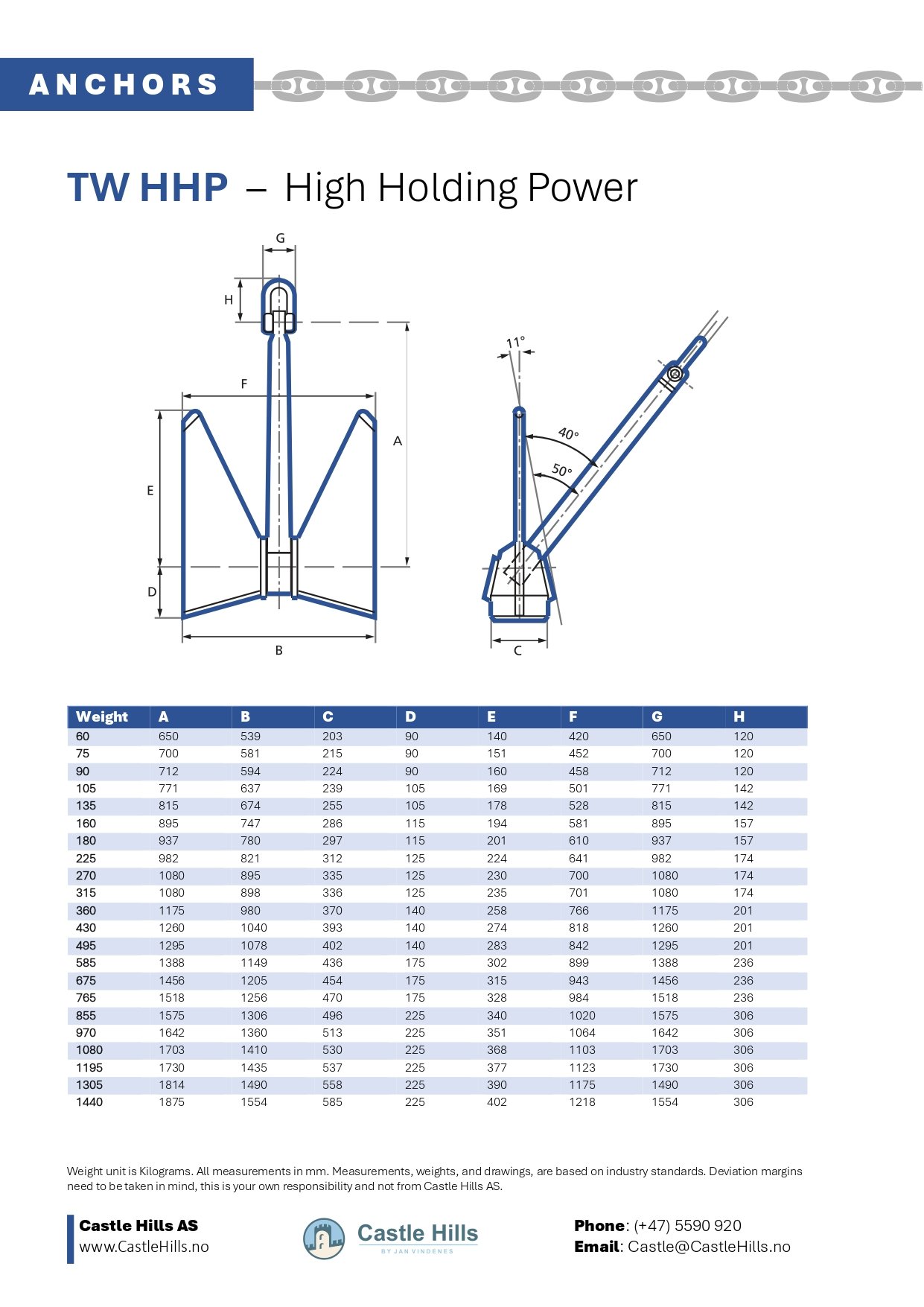

Technical Drawing of a HHP TW Anchor and sizes chart

Used POOL TW Anchor

We are a supplier of the original second hand POOL TW Anchor. It is used, in good conditions, and available in Norway. It can be delivered worldwide to different locations, such as EU.

Other TW Type Anchors

You might also be interested in similar anchors, that offer the same capabilities and might look very similar, but they are not the same! Not to be confused with the POOL TW.

EXISTING SIZES

This anchor is usually made in three categories of sizes. The small ones are between 60 and 1140 kgs. The medium sized anchors are usually between 1575 and 6975 kgs, and the large ones ones are between 7875 and 16125 kgs.

Weight A B C D E F G H
60 650 539 203 90 140 420 650 120
75 700 581 215 90 151 452 700 120
90 712 594 224 90 160 458 712 120
105 771 637 239 105 169 501 771 142
135 815 674 255 105 178 528 815 142
160 895 747 286 115 194 581 895 157
180 937 780 297 115 201 610 937 157
225 982 821 312 125 224 641 982 174
270 1080 895 335 125 230 700 1080 174
315 1080 898 336 125 235 701 1080 174
360 1175 980 370 140 258 766 1175 201
430 1260 1040 393 140 274 818 1260 201
495 1295 1078 402 140 283 842 1295 201
585 1388 1149 436 175 302 899 1388 236
675 1456 1205 454 175 315 943 1456 236
765 1518 1256 470 175 328 984 1518 236
855 1575 1306 496 225 340 1020 1575 306
970 1642 1360 513 225 351 1064 1642 306
1080 1703 1410 530 225 368 1103 1703 306
1195 1730 1435 537 225 377 1123 1730 306
1305 1814 1490 558 225 390 1175 1490 306
1440 1875 1554 585 225 402 1218 1554 306
1575 1931 1594 600 255 418 1250 1594 361
1710 1985 1635 614 255 429 1285 1635 361
1845 2035 1684 638 255 443 1315 1684 361
1980 2088 1733 652 255 451 1359 1733 361
2140 2138 1765 664 255 463 1385 1765 361
2295 2190 1802 678 255 473 1418 1802 361
2475 2240 1860 705 290 487 1453 1860 400
2655 2998 1900 716 290 497 1486 1900 400
2835 2350 1945 730 290 510 1521 1945 400
3040 2404 1984 744 290 520 1558 1984 400
3240 2456 2036 768 290 531 1590 2036 400
3445 2507 2070 782 290 540 1628 2070 400
3670 2560 2110 795 360 556 1658 2110 500
3940 2621 2152 802 360 563 1697 2152 500
4210 2680 2218 838 360 585 1735 2218 500
4500 2740 2264 854 360 596 1775 2264 500
4840 2800 2316 868 400 610 1812 2316 550
5175 2829 2334 876 400 615 1832 2334 550
5515 2921 2412 911 400 631 1893 2412 550
5850 2948 2439 918 400 642 1909 2439 550
6225 3033 2509 940 400 659 1964 2509 550
6975 3145 2623 990 400 675 2047 2623 550
7875 3264 2695 1012 470 709 2114 2695 660
8325 3340 2757 1041 470 724 2163 2757 660
8775 3381 2797 1052 470 737 2190 2797 660
9225 3453 2865 1092 470 756 2236 2865 660
9675 3497 2905 1109 500 768 2272 2905 700
10125 3552 2941 1126 500 780 2307 2941 700
10575 3591 2979 1142 500 791 2341 2979 700
11025 3658 3027 1158 540 802 2374 3027 750
12075 3784 3121 1174 540 813 2407 3121 750
12675 3829 3161 1196 540 826 2446 3161 750
13350 3903 3221 1214 570 840 2489 3221 800
14100 4010 3295 1236 570 855 2535 3295 800
15000 4057 3357 1262 570 873 2588 3357 800
16125 4170 3443 1293 625 894 2651 3443 870

Original POOL TW Anchor

It's design is extremely efficient, it holds a minimum amount of two times the same holding power as a regular stockless of the same mass.

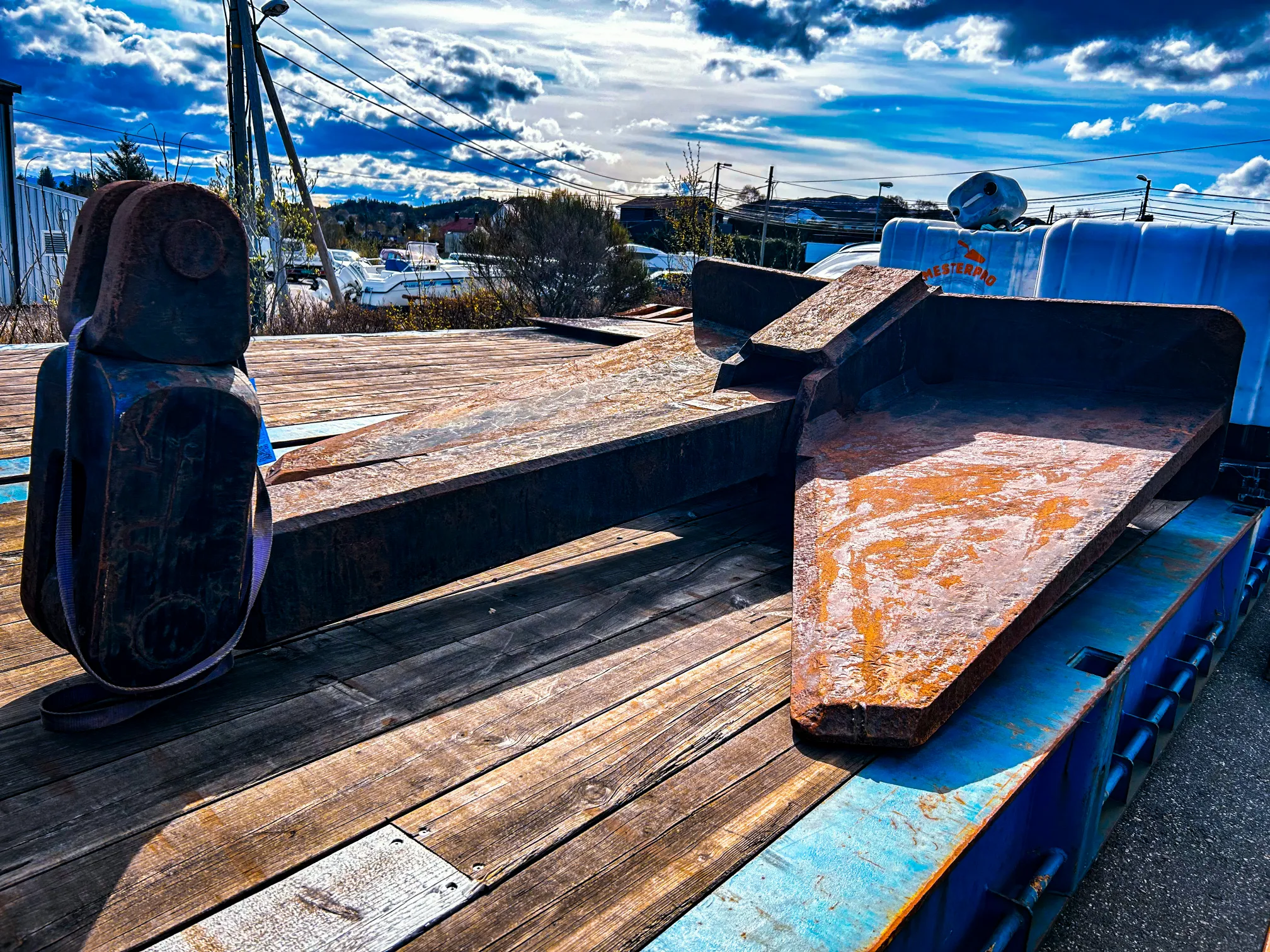

HHP TW in Stock in Sotra, Head Office of Castle Hills Delivery of galvanized steel TW anchors
