Buy or Rent a Safety Bow Shackle

Get a quote more info

The famous Safety Bow shackle is one of the most commonly used shackles for mooring chain. It is commonly known as the G 2130 shackle. While the design is standardized, there are different types of bolts depending on your needs.

Safety Bow Shackle

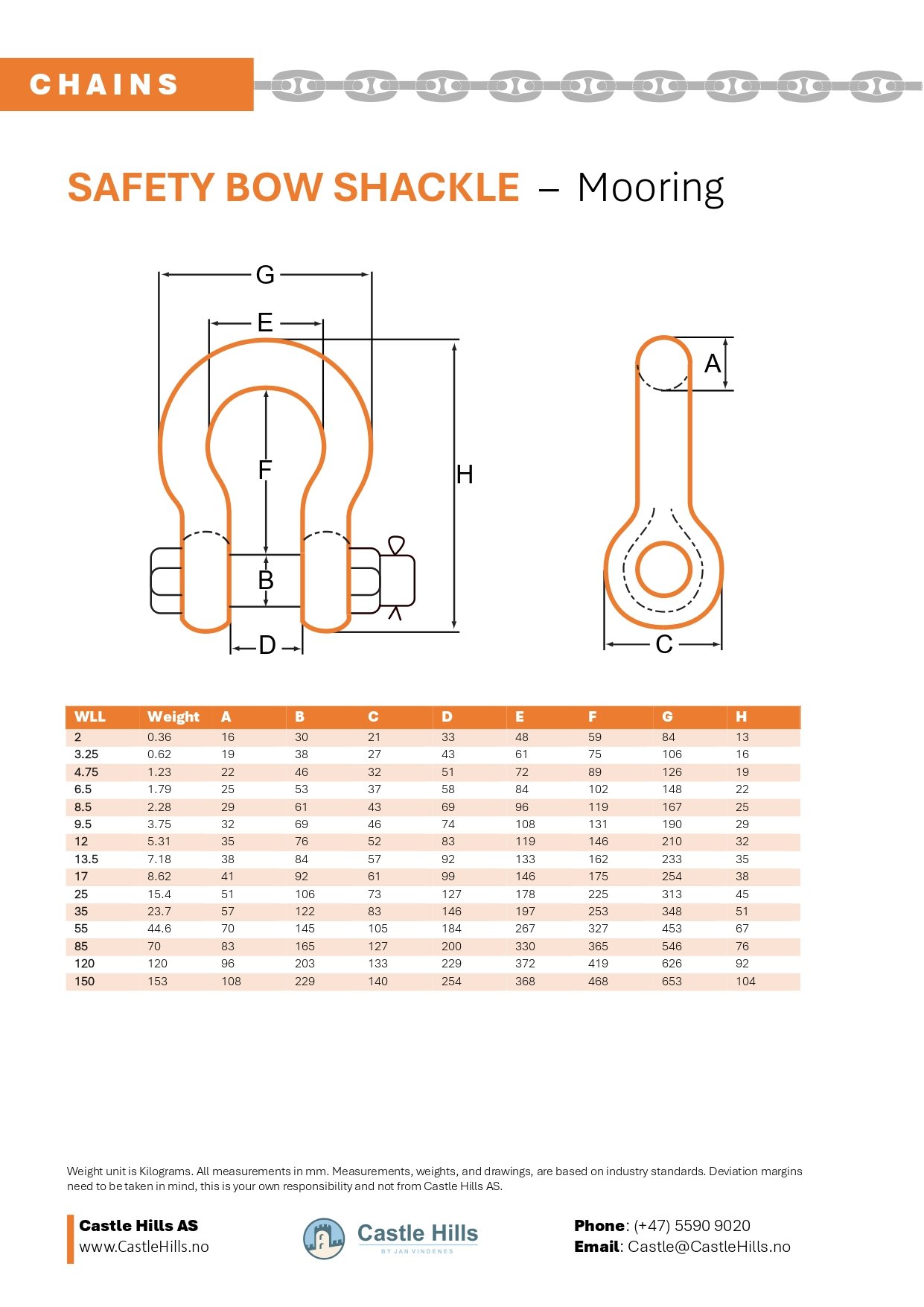

Safety Bow shackle technical drawing

Used Safety Bow Shackles

Here in Norway we have in Stock multiple types and sizes of the safety bow shackle. Several of them are original Crosby g 2130, used and second hand.

New Safety Bow Shackles

We also have in Stock both in Norway as well as in Asia Pacific thousands of new Safety Bow shackles, coming straight from our preferred maker's factory.

SIZES IN STOCK

The standard safety bow shackles comes in a wide array of different weights and sizes. Starting at a range between 0,36 and 1,79 kgs we have the smallest safety bow shackles. The medium sized safety bow shackle can weight between 2,28 and 8,62 kgs. While the largest ones, the big sizes of safety bow shackles can weight anything between 15,4 and 153 kgs, the ones used in the large mooring operations.

WLL A B C D E F Weight
2 13 16 22 51 32 32 0.44
3.25 16 19 27 64 43 38 0.79
4.75 19 22 31 76 51 44 1.26
6.5 22 25 36 83 58 50 1.88
8.5 25 28 43 95 68 56 2.79
9.5 28 32 47 108 75 64 3.8
12 32 35 51 115 83 70 5.26
13.5 35 38 55 133 92 76 7
17 38 42 60 146 99 84 8.8
25 45 50 74 178 126 100 15.6
35 50 57 83 197 138 114 20.65
42.5 57 65 95 222 160 130 29.3
55 65 70 105 254 180 140 41
85 75 80 127 330 190 160 64.5
120 89 95 154 381 238 190 109.5
150 102 108 165 400 275 216 160
200 120 130 175 500 290 260 235
250 125 140 200 540 305 280 285
300 135 150 220 600 305 280 340
400 165 175 225 650 325 350 570
500 175 185 250 700 350 370 685
600 195 205 275 700 375 410 880
700 205 215 300 730 400 430 980
800 210 220 300 730 400 440 1110
900 220 230 320 750 420 460 1295
1000 230 240 340 750 420 480 1475
1200 250 280 400 840 500 560 1900
1500 260 325 460 870 600 650 2800

Second Hand - Crosby Shackles Safety Bow

These are photos from our original Crosby Shackles of the model G 2130, which we have in Stock in our Norwegian facilities.

Crosby Shackle G2130 Second Hand crosby shackles

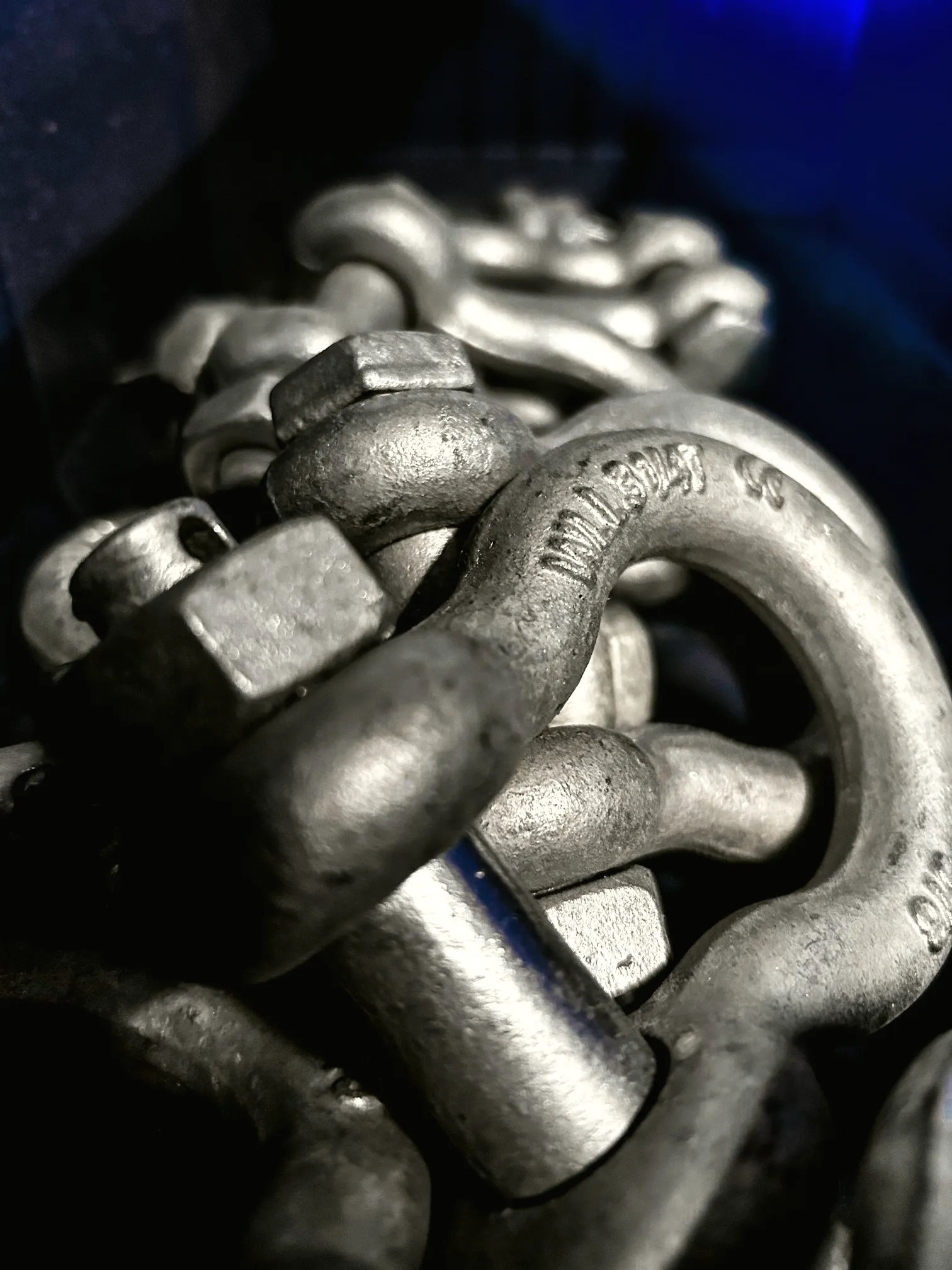

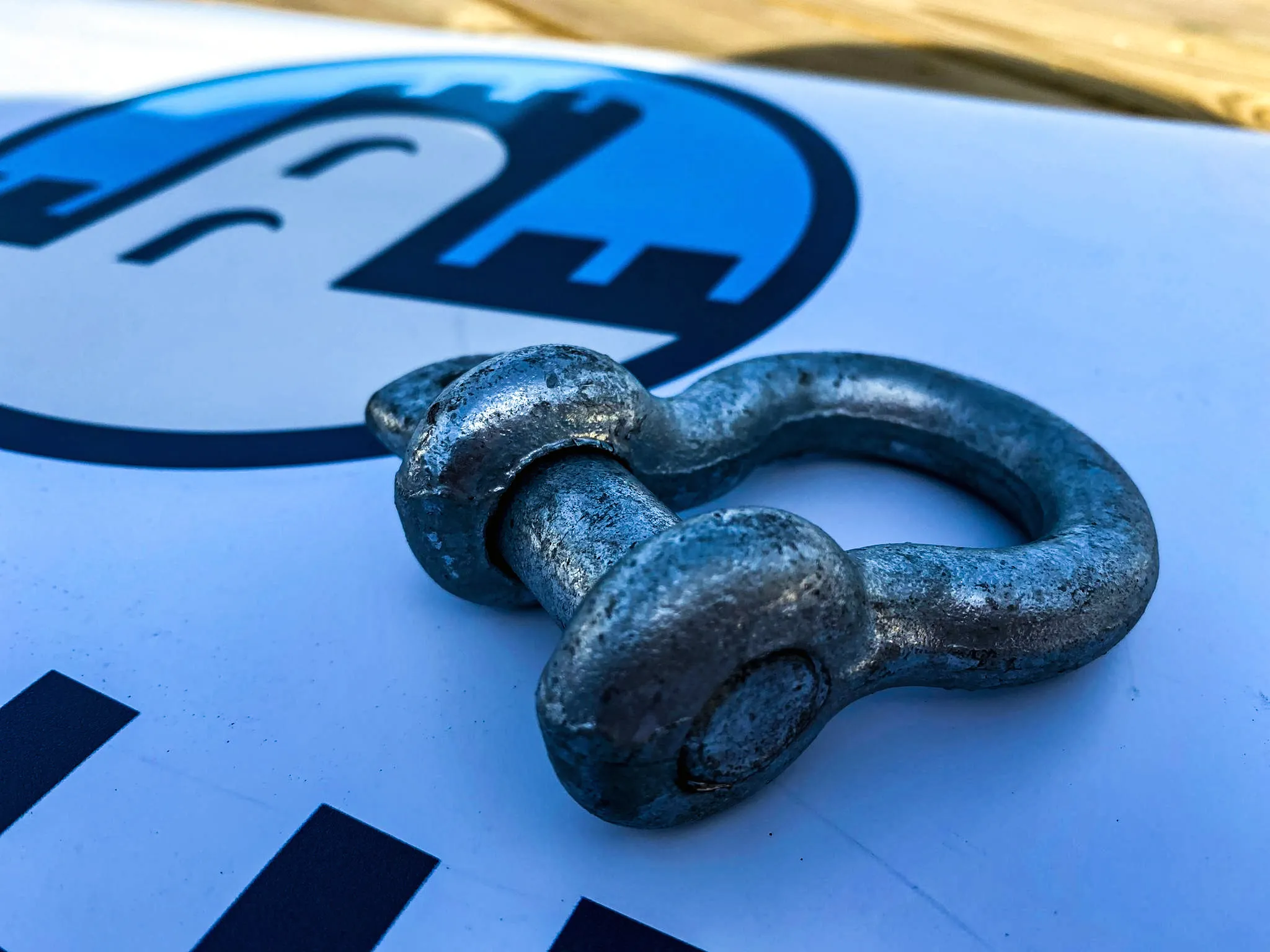

Safety Bow Shackles in Norway New Safety Bow Shackle

New Safety Bow Shackles from Castle Hills

We have hundreds of new safety bow shackles, which have never been used, and we bring them straight from the factory.
