+ MOORING CHAIN
+ SHACKLES stocklist
Get a quote
more info

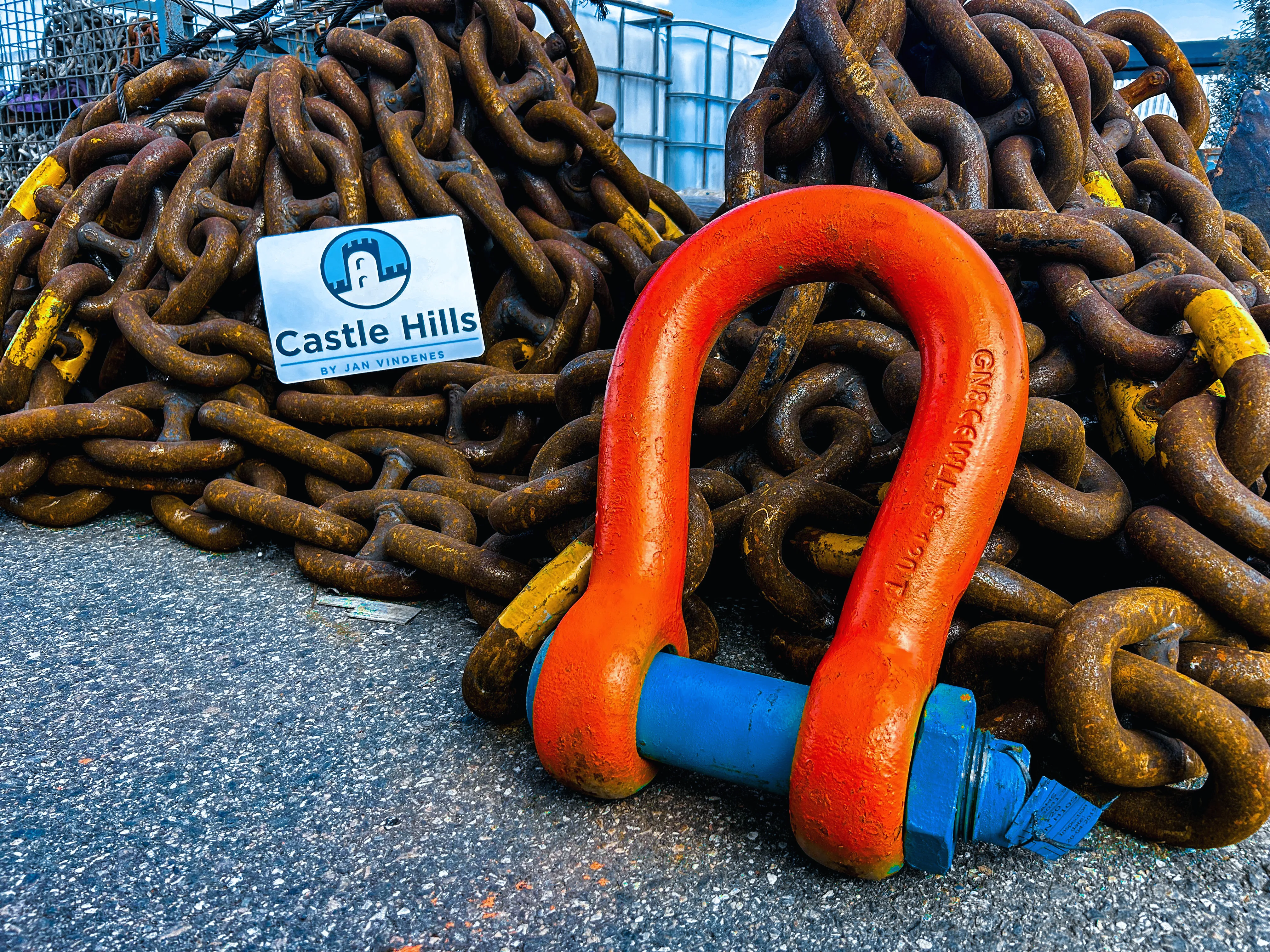

The GN H10 shackle, the one used for mooring, is also known as the GN Bow Safety Pin Shackle. It's design is almost identical from the H9 except that it has the security addition of a hole and a safety pin in the bolt of the shackle.
We own several sizes of the original GN H10 Bow Safety Pin Shackle, and we have it in Stock in Norway. We have delivered many for mooring projects.
We are also the owner of several H9 mooring shackles, made by the same manufacturer, and that are used in very similar applications as the H10.

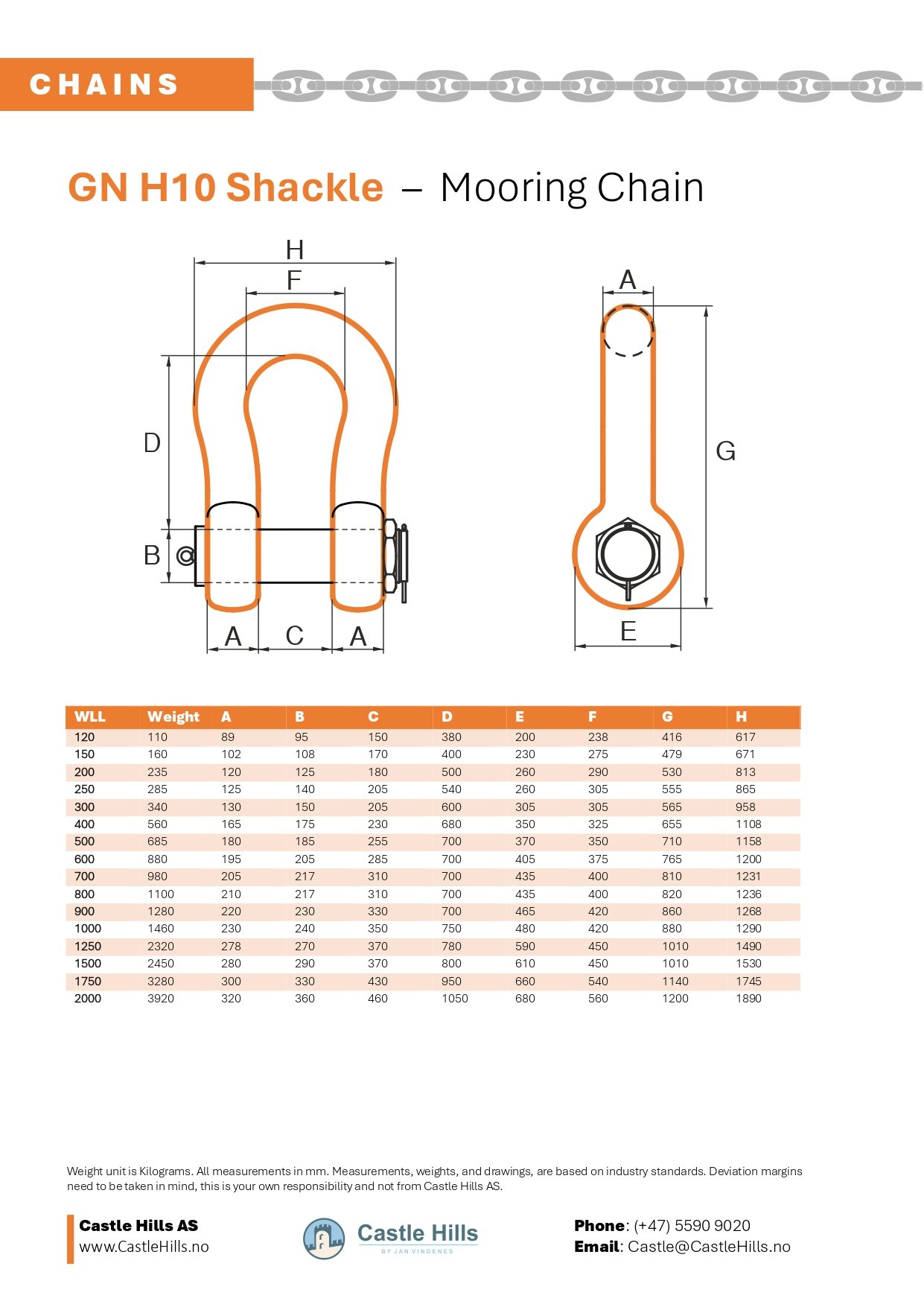

The smallest GN H10 mooring shackles start at 0,02 kg up to 0,72 kgs. Medium sizes are larger, starting at 1,2 kgs and going all the way up to 14 kgs. Larger sizes can go from 20 kgs until 62 kgs. Those are at least the standard sizes of the original GN H10 shackles, for larger sizes you can opt for our own mooring shackles, which are new, and produced directly for Castle Hills.
Giant GN H10 mooring shackles for a project in Saudi Arabia, which required large mooring equipment for cargo ships and oil tankers.
