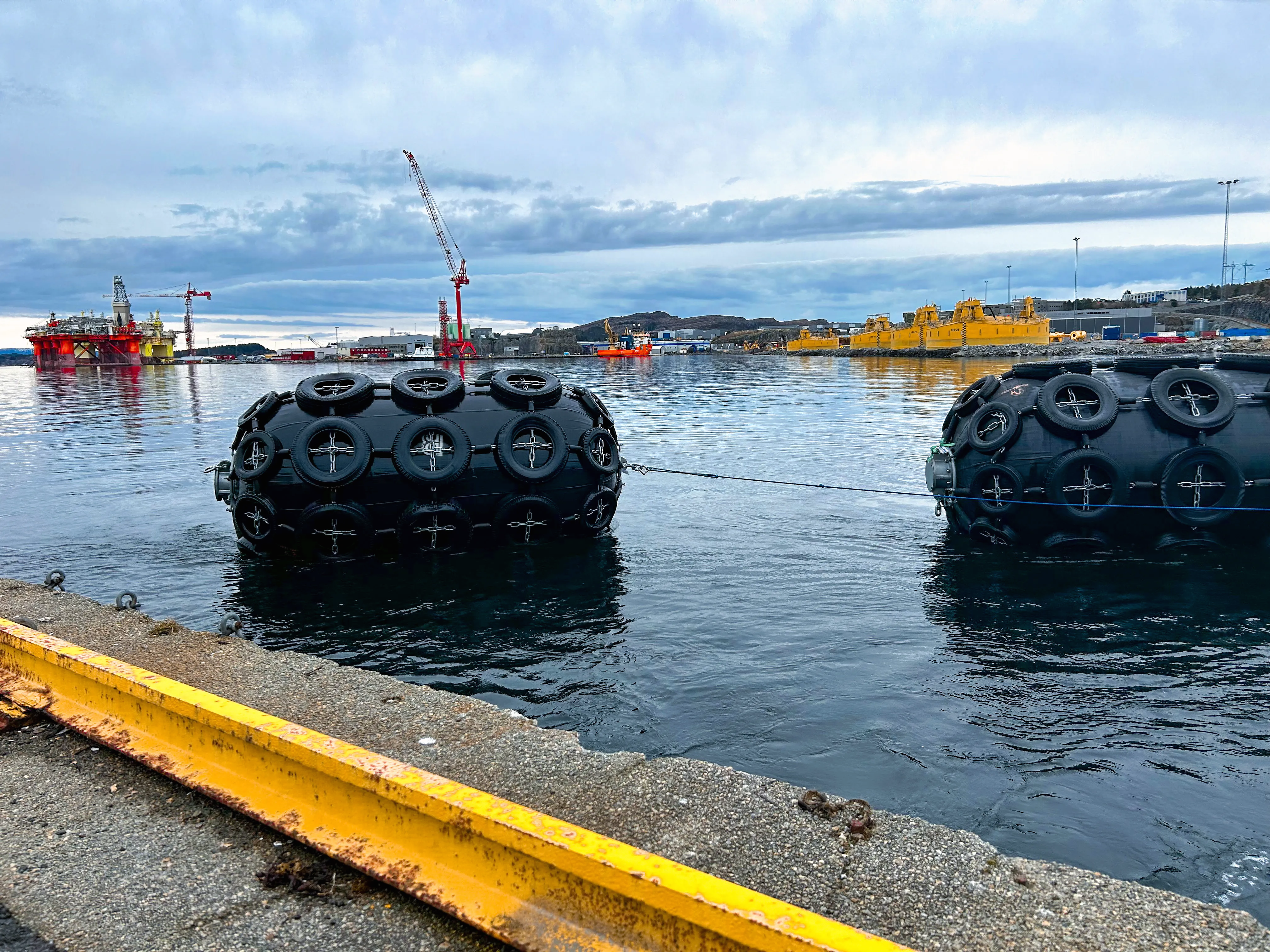

Tables, Charts & Technical Drawings of all sizes of Pneumatic Fenders

In this document you will find first of all a table with all the sizes of pneumatic fenders according to industry standards. Different types of data, such as energy absorption and reaction force of each one of the sizes between 700 x 1500 and 4500 x 9000. And you will find all the blueprints and technical drawings of the Yokohama style Fenders.

DOWNLOAD PDF

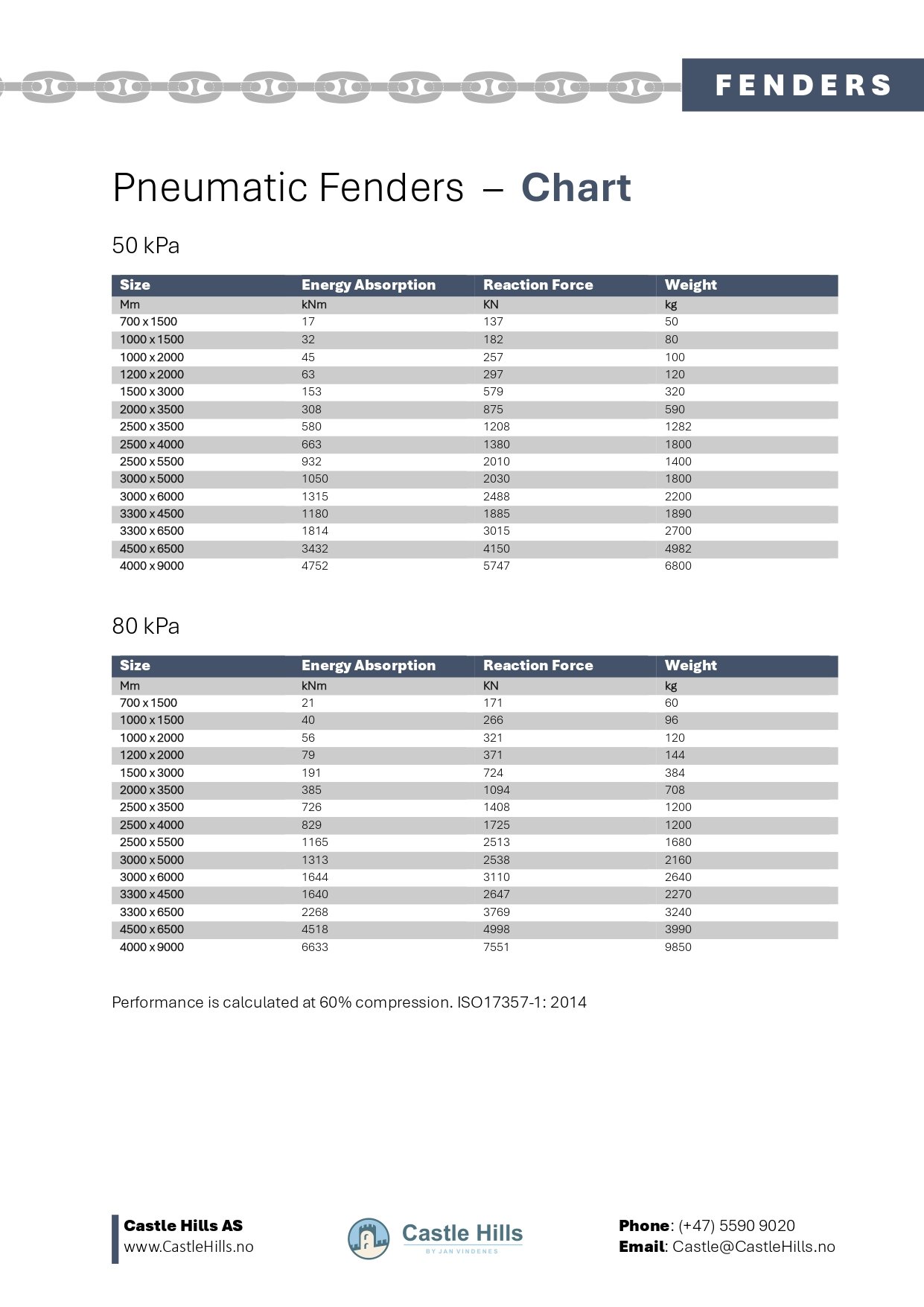

Table Yokohama Fender style Pneumatic Fenders

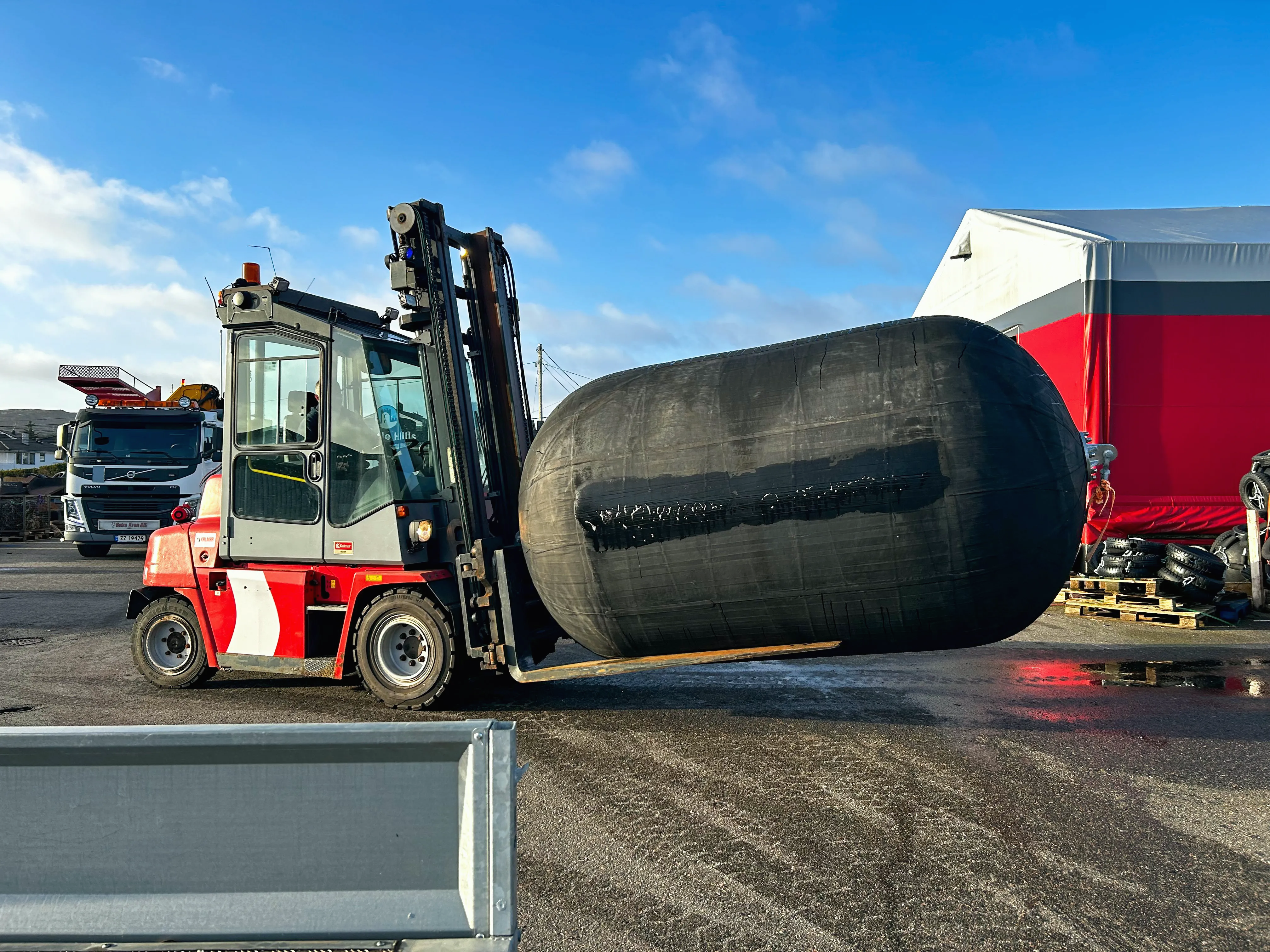

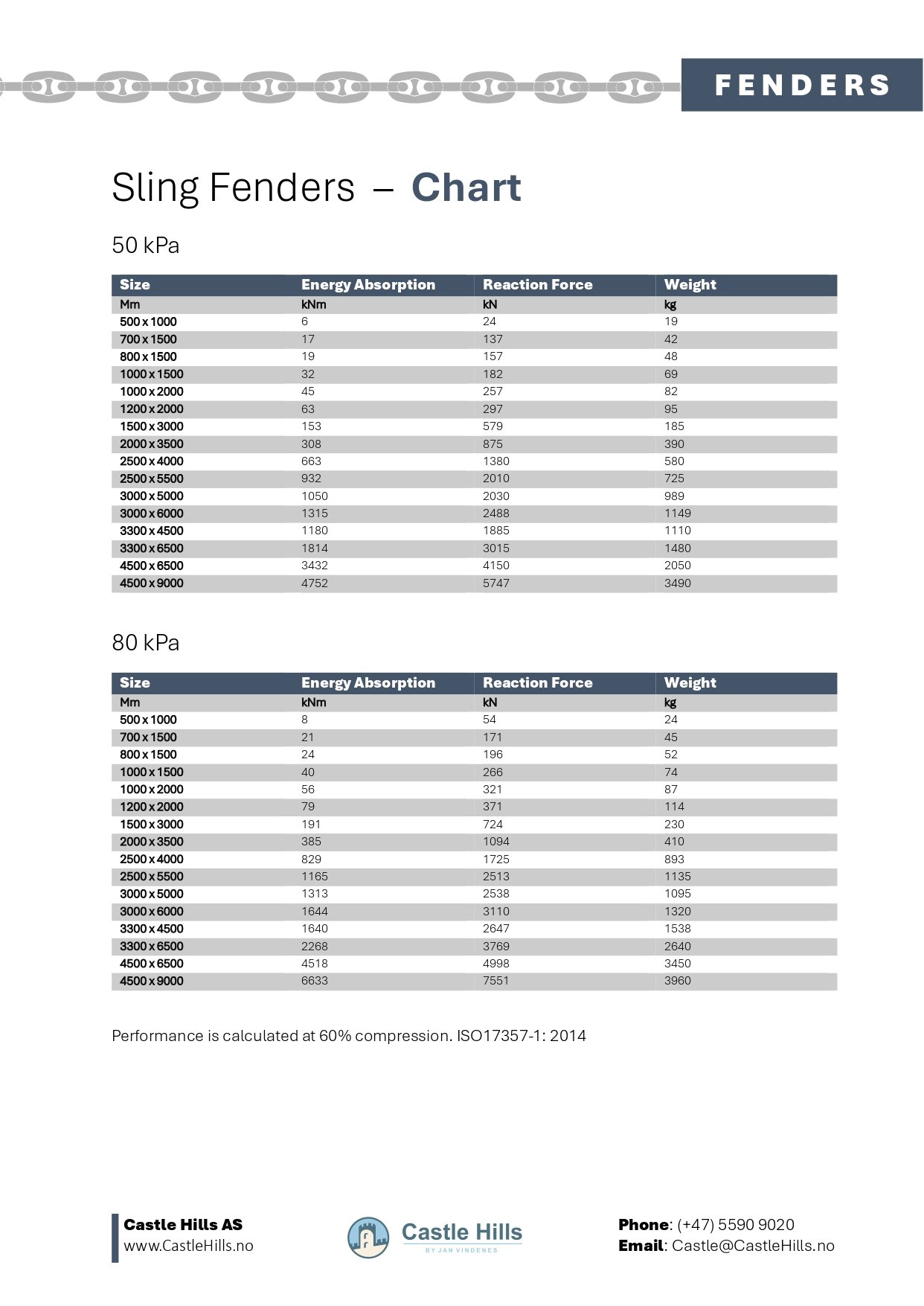

Sling Fenders weights and sizes Tables, Charts & Technical Drawings

In this other document you will find information regarding all the sizes of Sling Fenders. There are practically the same sizes as the regular Yokohama style Pneumatic Fenders, with the addition of some extra smaller sizes. In regards of energy absorption and reaction force there are no changes, only in the weight of each fender.

DOWNLOAD PDF

ON THE TABLE

ENERGY ABSORPTION

The Energy Absorption of a Pneumatic Fender is expressed in kNm or in kJ. As the name implies, this variable explains the amount of energy this Yokohama style Fender is dissipating.

REACTION FORCE

The Reaction Force of a Yokohama style Fender is expressed in kN, and it reflects the force exercised by the fender itself against the ship or maritime structure.

WEIGHT

This chart includes the weights of 700 x 1500, 1000 x 1500, 1000 x 2000, 1500 x 3000, 2000 x 3500, 2500 x 5500, 3000 x 5000, 3000 x 6000, 3300 x 4500, 3300 x 6500, 4500 x 6500 & 4500 x 9000 mm pneumatic fenders.

This table is a compilation of weights and sizes, which are an approximation based on industry standards, and calculated at a 60% initial compression. The pneumatic fender that this chart is referencing is according to the ISO17357-1: 2014 industry standard.
